Pitch
0.100" (2.54mm)
Series
Triomate
Packaging
Tray
Part Status
Active
RoHS Compliant
Why Choose Us
Quality Warranty
Quality guarantee
ESD Safe
Anti-static protection
Global Shipping
Fast delivery
Quick Response
Fast RFQ
Request for Quote
Price not displayed? Please send an RFQ, and we will respond immediately.
MOQ1 pcs
Professional Packaging
Original Packaging
Factory sealed, ESD anti-static tray
Desiccant Protection
Humidity indicator card & silica gel included
Vacuum Sealing
Moisture barrier bag, nitrogen filled
Secure Boxing
Anti-vibration foam, shock-proof labeling
| Parameter | Value |
|---|---|

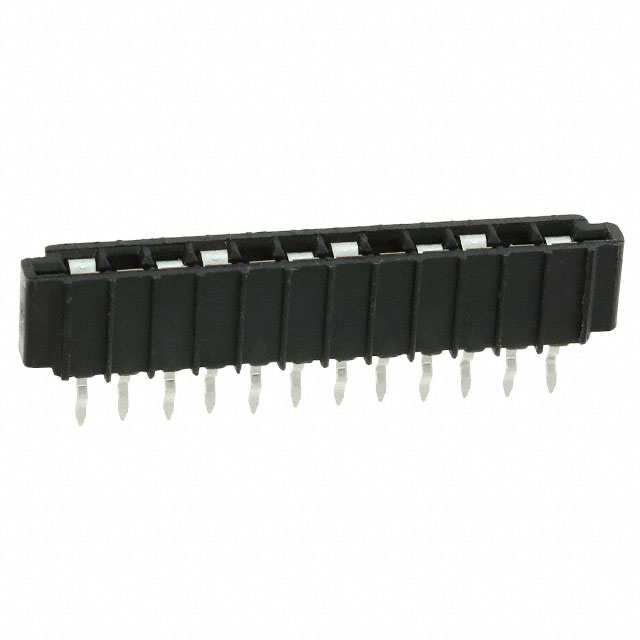

| Category | FFC, FPC (Flat Flexible) Connector Assemblies |
| Manufacturer | TE Connectivity AMP Connectors |
| Pitch | 0.100" (2.54mm) |
| Series | Triomate |
| Features | - |
| Packaging | Tray |
| Part Status | Active |
| Termination | Kinked Pin |
| Manufacturer | TE Connectivity AMP Connectors |
| Housing Color | Black |
| Mating Cycles | 25 |
| Mounting Type | Through Hole |
| Actuator Color | - |
| Cable End Type | Straight |
| Contact Finish | Tin |
| Flat Flex Type | FFC, FPC |
| Voltage Rating | 250V |
| Locking Feature | - |
| Contact Material | Phosphor Bronze |
| Housing Material | Polyester Thermoplastic, Glass Filled |
| Actuator Material | - |
| FFC, FCB Thickness | 0.13mm ~ 0.38mm |
| Height Above Board | 0.273" (6.93mm) |
| Base Product Number | 520315 |
| Number of Positions | 12 |
| Current Rating (Amps) | 1A |
| Operating Temperature | -55°C ~ 105°C |
| Connector/Contact Type | Contacts, Vertical - 1 Sided |
| Contact Finish Thickness | - |
| Material Flammability Rating | UL94 V-0 |
