Packaging
Box
Filter Type
Power Line
Part Status
Active
Height (Max)
2.350" (59.70mm)
RoHS Compliant
Why Choose Us
Quality Warranty
Quality guarantee
ESD Safe
Anti-static protection
Global Shipping
Fast delivery
Quick Response
Fast RFQ
Request for Quote
Price not displayed? Please send an RFQ, and we will respond immediately.
MOQ1 pcs
Professional Packaging
Original Packaging
Factory sealed, ESD anti-static tray
Desiccant Protection
Humidity indicator card & silica gel included
Vacuum Sealing
Moisture barrier bag, nitrogen filled
Secure Boxing
Anti-vibration foam, shock-proof labeling
| Parameter | Value |
|---|---|

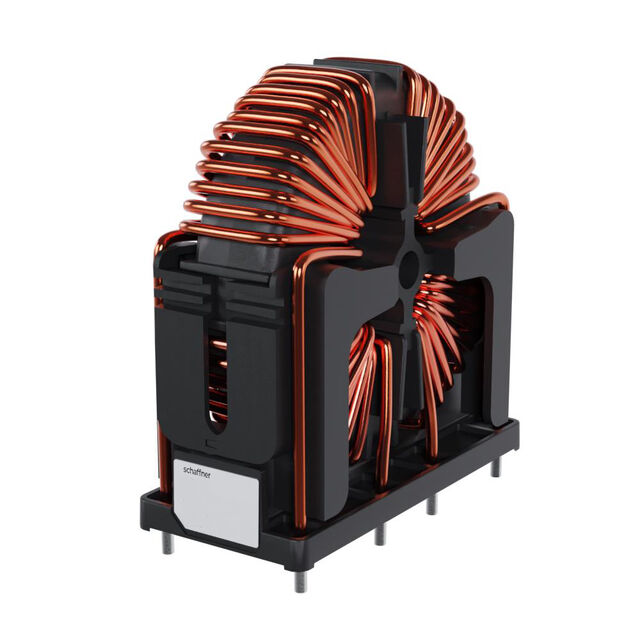

| Category | Common Mode Chokes |
| Manufacturer | TE Connectivity Schaffner |
| Series | - |
| Ratings | - |
| Features | - |
| Packaging | Box |
| Filter Type | Power Line |
| Part Status | Active |
| Height (Max) | 2.350" (59.70mm) |
| Manufacturer | TE Connectivity Schaffner |
| Mounting Type | Through Hole |
| Package / Case | Vertical, 8 PC Pin |
| Approval Agency | UR |
| Number of Lines | 4 |
| Size / Dimension | 2.362" L x 1.063" W (60.00mm x 27.00mm) |
| Voltage Rating - AC | 530V |
| Voltage Rating - DC | 1000V (1kV) |
| Current Rating (Max) | 32A |
| Operating Temperature | -40°C ~ 125°C |
| Inductance @ Frequency | 180 µH @ 100 kHz |
| DC Resistance (DCR) (Max) | 1.7mOhm |
