Packaging
Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
Input Type
DC
Output Type
Transistor
Part Status
Active
RoHS Compliant
Why Choose Us
Quality Warranty
Quality guarantee
ESD Safe
Anti-static protection
Global Shipping
Fast delivery
Quick Response
Fast RFQ
Request for Quote
Price not displayed? Please send an RFQ, and we will respond immediately.
MOQ1 pcs
Professional Packaging
Original Packaging
Factory sealed, ESD anti-static tray
Desiccant Protection
Humidity indicator card & silica gel included
Vacuum Sealing
Moisture barrier bag, nitrogen filled
Secure Boxing
Anti-vibration foam, shock-proof labeling
| Parameter | Value |
|---|---|

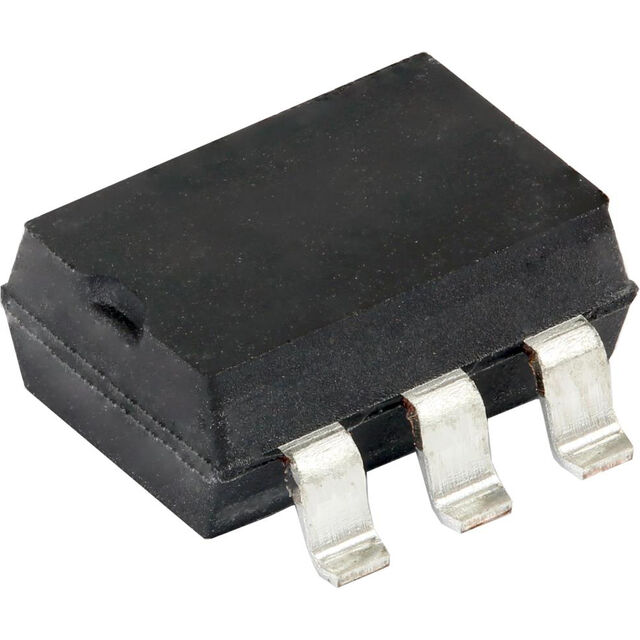

| Category | Transistor, Photovoltaic Output Optoisolators |
| Manufacturer | Vishay Semiconductor Opto Division |
| Series | - |
| Packaging | Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel® |
| Input Type | DC |
| Output Type | Transistor |
| Part Status | Active |
| Manufacturer | Vishay Semiconductor Opto Division |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, Gull Wing |
| Number of Channels | 1 |
| Base Product Number | CNY17 |
| Voltage - Isolation | 5000Vrms |
| Vce Saturation (Max) | 400mV |
| Operating Temperature | -55°C ~ 110°C |
| Rise / Fall Time (Typ) | 2µs, 2µs |
| Voltage - Output (Max) | 70V |
| Supplier Device Package | 6-SMD |
| Current - Output / Channel | 50mA |
| Current Transfer Ratio (Max) | 320% @ 10mA |
| Current Transfer Ratio (Min) | 160% @ 10mA |
| Voltage - Forward (Vf) (Typ) | 1.39V |
| Turn On / Turn Off Time (Typ) | 3µs, 2.3µs |
| Current - DC Forward (If) (Max) | 60 mA |
