How to Understand the Impedance of a Capacitor Formula

Impedance shows how much a circuit resists the flow of alternating current. You measure impedance by comparing voltage and current in a circuit. The impedance of a capacitor formula is:

Z = 1 / (jωC) or Z = -jXc

You see j as the imaginary unit, ω as angular frequency, f as frequency, C as capacitance, and Xc as capacitive reactance. You find capacitor impedance in signal processing, power supplies, RF circuits, and audio systems.

Key Takeaways

• Impedance measures how much a circuit resists alternating current. It changes with frequency, unlike resistance, which stays constant.
• The impedance of a capacitor formula is Z = 1 / (jωC). This shows that higher frequency leads to lower impedance, allowing more current to pass.
• Capacitance affects impedance directly. Increasing capacitance lowers impedance, while decreasing capacitance raises it. Choose the right capacitance for your circuit needs.
• The imaginary unit 'j' in the formula indicates a phase shift. It shows that voltage lags behind current by 90 degrees in a capacitor.
• Understanding capacitor impedance helps in designing better circuits. It allows for improved signal flow and stability in electronic devices.

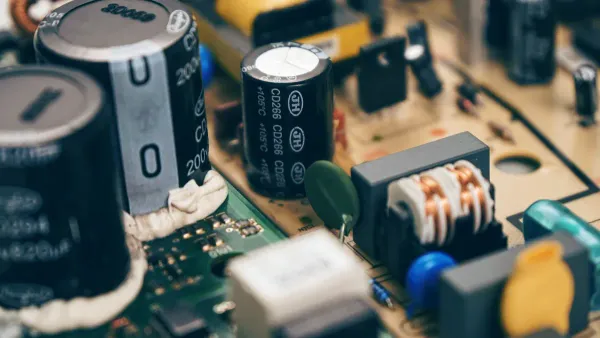

Impedance of a Capacitor Formula

What Is Impedance?

Impedance tells you how much a circuit resists the flow of alternating current. You can think of it as a combination of resistance and reactance. Resistance slows down both AC and DC, but reactance only affects AC. When you work with capacitors, you see that impedance changes with frequency. This is different from a resistor, which always has the same value.

Impedance uses the symbol Z. It is measured in ohms (Ω), just like resistance. In AC circuits, impedance is not just a number. It also has a direction, or phase, because voltage and current can shift away from each other. You use complex numbers to show this phase difference.

The impedance of a capacitor is derived from the relationship between voltage and current in an AC circuit. Starting with a sinusoidal voltage, we can express the current through the capacitor using the formula (I = C \frac{dV(t)}{dt}). By substituting the voltage expression and applying Ohm's law, we find that the impedance is given by (Z_C = -j/\omega C).

The Formula Explained

You often see the impedance of a capacitor formula written in three ways:

• ( Z = \frac{1}{j\omega C} )
• ( Z = -jX_c )
• ( X_c = \frac{1}{2\pi f C} )

Each part of the formula has a special meaning. The table below helps you understand what each symbol stands for:

The imaginary unit j is very important in AC circuit analysis. You use j to show that voltage and current are not always in step. Here are some key points about j:

• The imaginary unit 'j' represents complex numbers in AC circuit analysis.
• It is essential for understanding circuits with sinusoidal signals.
• 'j' allows for the representation of both magnitude and phase in calculations, especially in phasor notation.
• Physically, 'j' indicates energy storage in components like capacitors and represents phase shifts in the circuit.
• The j operator is defined as the square root of -1, denoted as j = sqrt(-1).
• It is crucial for expressing complex numbers in the form a + jb, where 'a' is the real part and 'b' is the imaginary part.
• The j operator simplifies the analysis of AC circuits, enabling the use of phasor notation for representing voltages and currents.

You use the formula ( X_c = \frac{1}{2\pi f C} ) to find the capacitive reactance. This value tells you how much the capacitor resists AC at a certain frequency. When you want to find the full impedance, you use ( Z = -jX_c ). This shows that the impedance is not just a number, but also has a direction in the complex plane.

To move from capacitive reactance to impedance, you follow these steps:

1. To calculate the capacitive reactance (Xc), use the formula: Xc = 1/(ωC) = 1/(2πfC).
2. To convert capacitive reactance to impedance, apply the formula: Z = -jX, where X is the reactance.
3. This indicates that the impedance of a capacitor is represented as a complex number with a phase shift of -90 degrees.

The negative sign in the impedance of a capacitor formula is very important. It tells you about the phase relationship between voltage and current. Here is what the negative sign means:

• The negative sign in the impedance formula indicates that the voltage lags the current by 90 degrees.
• This phase difference is crucial in understanding how capacitive reactance affects the overall impedance in AC circuits.
• The negative value of the reactive component (Xc) in the impedance calculation reflects this phase lag.

When you look at the capacitor impedance frequency response, you see that impedance gets smaller as frequency goes up. This means a capacitor blocks low-frequency signals but lets high-frequency signals pass more easily. You use this property in filters and timing circuits.

You should also know that the standard impedance of a capacitor formula works best at low and medium frequencies. At very high frequencies, other factors like equivalent series resistance (ESR) become important. For example:

This table shows that at high frequencies, the ESR of some capacitors can be much higher than others. This affects the total impedance and the performance of your circuit.

By understanding each part of the impedance of a capacitor formula, you can predict how a capacitor will behave in any AC circuit. You can also choose the right capacitor for your needs and avoid problems in your designs.

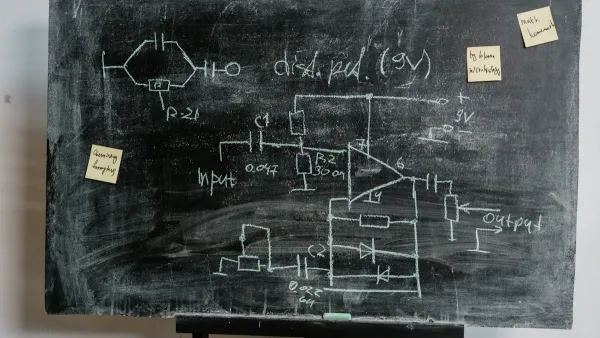

Breaking Down the Formula

The Role of Frequency

When you look at the impedance of a capacitor, frequency plays a huge part. The formula shows you that impedance equals 1 divided by the product of the imaginary unit, angular frequency, and capacitance. You see this written as:

Z = 1 / (jωC)

Frequency, shown as "f," connects to angular frequency, which is ω = 2πf. As frequency increases, impedance drops. You can see this relationship in the following ways:

• The impedance of a capacitor is inversely proportional to frequency.
• Higher frequency means lower impedance.
• Lower frequency means higher impedance.

If you use a capacitor in a circuit with a high-frequency signal, the impedance becomes very small. This allows more current to pass through. At low frequencies, the impedance rises, so the capacitor blocks more current. You can use this property to filter signals or control timing in electronic devices.

Tip: When you double the frequency, the impedance of a capacitor gets cut in half. This makes capacitors very useful in circuits that need to separate high and low frequencies.

You notice that capacitors conduct current based on how quickly the voltage changes. Fast changes in voltage, which happen at high frequencies, cause the capacitor to pass more current. Slow changes, found at low frequencies, result in less current passing through.

Capacitance in the Formula

Capacitance also affects impedance in a big way. The formula tells you that impedance depends on both frequency and capacitance. When you increase the capacitance, the impedance drops. If you decrease the capacitance, the impedance rises.

You can see this relationship in the formula:

Z = 1 / (jωC)

Capacitance measures how much charge a capacitor can store. A larger capacitance means the capacitor can store more charge and offers less impedance to AC signals. A smaller capacitance means the capacitor stores less charge and creates more impedance.

You use capacitors with different capacitance values to control how much they resist AC signals. In audio circuits, you might choose a large capacitor to let bass signals pass. In timing circuits, you pick a small capacitor to slow down the response.

Note: The inverse relationship between capacitance and impedance helps you select the right capacitor for your project. Always check the capacitance value when you want to control how much impedance the capacitor provides.

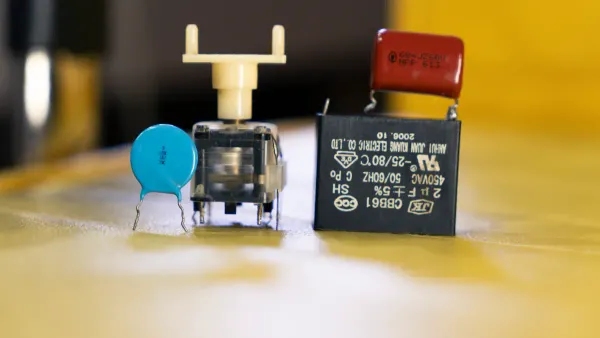

Calculate Impedance of a Capacitor

Step-by-Step Example

You can find the impedance of a capacitor by following a clear process. Let’s use a real example to make things simple. Suppose you have a capacitor with a value of 10 microfarads (µF), and the AC signal has a frequency of 1,000 hertz (Hz).

1. Identify Capacitance (C): You see the capacitor has a value of 10 µF. You need to convert this to farads.
   • 10 µF = 10 × 10⁻⁶ F = 0.00001 F
2. Identify Frequency (f): The frequency is 1,000 Hz.
3. Calculate Reactance (Xc): Use the formula:

   Xc = 1 / (2πfC)


   Plug in the values:

   Xc = 1 / (2 × 3.1416 × 1,000 × 0.00001)
      = 1 / (0.06283)
      ≈ 15.9 Ω


4. Calculate Impedance (Z): Substitute Xc into the impedance formula:

   Z = -jXc


   So,

   Z = -j15.9 Ω


5. Interpret the Result: The impedance is a complex number. The negative sign and the "j" show that the voltage lags the current by 90 degrees.

Tip: Always check your units before you start. Many people make mistakes by confusing microfarads, nanofarads, or picofarads. You should convert all values to the correct units before using the formula.

Interpreting Results

When you finish your calculation, you get the impedance as a complex number. This tells you both how much the capacitor resists AC and how the phase shifts. In the example, the impedance is -j15.9 Ω. The "j" means the impedance is not just a simple resistance. It shows a phase difference between voltage and current.

You should remember a few common mistakes:

1. Misreading units of measurement can lead to big errors. Always check if you are using microfarads, nanofarads, or picofarads.
2. Forgetting to convert values can make your impedance calculation wrong. Use farads for capacitance and hertz for frequency.
3. Using the wrong formula for series or parallel capacitors can give you the wrong impedance.

You can use the impedance value to decide how the capacitor will behave in your circuit. If the impedance is low, the capacitor lets more AC pass. If the impedance is high, it blocks more AC. You can use this information to design filters, timing circuits, or signal processing systems.

Why Impedance of a Capacitor Matters

AC vs DC Circuits

You see capacitors in almost every electronic device. Their impedance changes how they work in AC and DC circuits. In DC circuits, capacitors act like open switches. They block current after charging up. You do not get a steady flow of current through a capacitor in a DC circuit. In AC circuits, things change. The impedance of a capacitor depends on the frequency of the signal. When you use AC, capacitors let current flow, but they resist changes in voltage.

• Capacitors behave as open circuits in DC, preventing current flow.
• In AC, capacitors show frequency-dependent impedance, affecting current flow and phase relationships.
• Voltage lags behind current by 90 degrees in a series circuit with a capacitor.
• Capacitors resist sudden changes in voltage, which shapes their behavior in both AC and DC circuits.

You can compare capacitors and inductors in AC circuits using this table:

This phase difference helps you design circuits that control how signals move and interact.

Practical Applications

You use the impedance of a capacitor in many real-world projects. Capacitors help you filter signals, control timing, and keep power supplies stable. Here are some ways you see capacitor impedance in action:

• In low-pass filters, capacitors let low-frequency signals pass and block high-frequency noise. The value of the capacitor sets the cutoff frequency.
• A larger capacitor lowers the cutoff frequency, letting more low-frequency signals through. A smaller capacitor raises the cutoff, blocking more low frequencies.
• In high-pass filters, capacitors charge and allow high-frequency signals to pass, blocking low frequencies. Again, the capacitor value sets the cutoff point.

You also find capacitors in these common uses:

• Decoupling and Bypassing: Capacitors provide a low-impedance path to ground for high-frequency noise.
• Power Integrity: They keep the power supply clean by maintaining low, stable impedance in power networks.
• Filtering: You design low-pass, high-pass, and band-pass filters using capacitor impedance.
• RF/Microwave Design: Capacitors help match impedance and keep signals clear at high frequencies.
• EMI/EMC Control: They suppress electromagnetic interference, with their effectiveness linked to impedance at those frequencies.

Tip: When you choose a capacitor for your project, always think about how its impedance will affect your circuit’s performance. The right capacitor can make your design work better and last longer.

Factors Affecting Impedance

Frequency Changes

You see that frequency has a big impact on the impedance of a capacitor. When you increase the frequency, the impedance drops. At low frequencies, the capacitor blocks more current. At high frequencies, it lets more current pass. This relationship helps you design filters and signal processing circuits.

The behavior of capacitors changes at very high frequencies. Real capacitors have parasitic inductance and resistance. These non-ideal features cause the impedance to rise again after a certain point. You notice this effect in RF circuits and high-speed electronics.

Here is a table that shows how frequency and parasitics affect impedance:

At higher frequencies, parasitic inductance becomes important. The capacitor can start to act like an inductor beyond its self-resonant frequency. You need to consider these effects when you work with high-frequency signals.

You also find that different types of capacitors behave differently. Electrolytic capacitors lose much of their capacitance at high frequencies. For example, at 100 kHz, their capacitance can drop to only 10–20% of the value measured at 100 Hz. Film capacitors keep their performance at high frequencies because they have low losses and low parasitic inductance.

Capacitance Variations

Capacitance changes also affect impedance. When you increase the capacitance, the impedance drops. When you decrease the capacitance, the impedance rises. This direct relationship helps you control how much AC current passes through your circuit.

• Higher capacitance allows more AC current to flow at higher frequencies.
• In a purely capacitive circuit, impedance equals capacitive reactance, so any change in capacitance changes the impedance.
• In circuits with both resistance and reactance, total impedance depends on both values. You use the formula:

  Z = √(R² + Xc²)


  Changes in capacitance can shift the total impedance.

Manufacturing tolerances can cause variations in capacitance. You might see a +/-5% tolerance, which means not all capacitors meet the exact value. This can affect circuit performance and may require you to tune or replace parts. Variations in dielectric thickness and material can also change the filter response.

Environmental factors like temperature and humidity can change capacitance and impedance. High temperatures can reduce service life and change capacitance. High humidity can cause leakage and corrosion, lowering capacitance and increasing losses.

You need to consider these factors when you select capacitors for your projects. Proper choice and careful design help you keep impedance stable and your circuits reliable.

---

Understanding the impedance of a capacitor helps you design circuits that work well and stay reliable. You use the formula to predict how capacitors will react to different signals. When you know how impedance changes, you can:

• Improve circuit performance by matching impedance for better signal flow.
• Reduce stress on components and keep your devices stable.
• Avoid mistakes from temperature changes or measurement errors.
• Make troubleshooting easier and speed up your design process.

Tip: Explore guides that explain how capacitors work in AC circuits. You will learn about reactance, phase shifts, and how to choose the right capacitor for your project.

FAQ

What does the "j" mean in the impedance formula?

You see "j" in the formula because it shows a phase shift. "j" stands for the imaginary unit. It helps you understand how voltage and current move out of step in AC circuits.

How does frequency affect capacitor impedance?

You notice that higher frequency lowers impedance. Lower frequency raises impedance. If you double the frequency, you cut the impedance in half. This helps you control which signals pass through your circuit.

Tip: Use the formula ( X_c = \frac{1}{2\pi f C} ) to see how frequency changes impedance.

Why do you use farads for capacitance?

You use farads because it measures how much charge a capacitor can store. Always convert microfarads (µF), nanofarads (nF), or picofarads (pF) to farads before using the formula.

Can you use the impedance formula for DC circuits?

You cannot use the impedance formula for DC circuits. In DC, the frequency is zero, so the impedance becomes infinite. The capacitor blocks DC after it charges.

What happens if you pick the wrong capacitor value?

You risk poor circuit performance. If the capacitance is too high or too low, signals may not pass as you expect. Always check your values before building your circuit.
