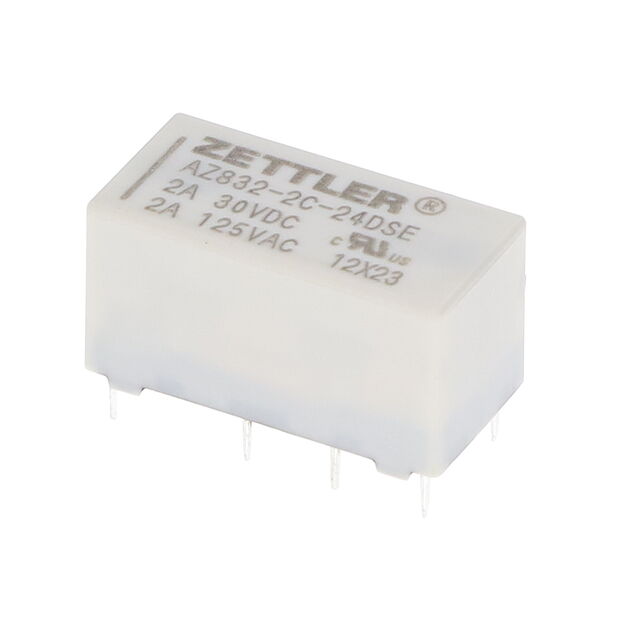

Series
AZ832
Coil Type
Non Latching
Packaging
Tube
Relay Type
General Purpose
RoHS Compliant
Why Choose Us
Quality Warranty
Quality guarantee
ESD Safe
Anti-static protection
Global Shipping
Fast delivery
Quick Response
Fast RFQ
Request for Quote
Price not displayed? Please send an RFQ, and we will respond immediately.
MOQ1 pcs
Professional Packaging
Original Packaging
Factory sealed, ESD anti-static tray
Desiccant Protection
Humidity indicator card & silica gel included
Vacuum Sealing
Moisture barrier bag, nitrogen filled
Secure Boxing
Anti-vibration foam, shock-proof labeling
| Parameter | Value |
|---|---|
| Category | Power Relays, Over 2 Amps |
| Manufacturer | American Zettler |
| Grade | - |
| Series | AZ832 |
| Features | - |
| Coil Type | Non Latching |
| Packaging | Tube |
| Relay Type | General Purpose |
| Part Status | Active |
| Seal Rating | Sealed - Fully |
| Coil Current | 6.3 mA |
| Coil Voltage | 24VDC |
| Contact Form | DPDT (2 Form C) |
| Operate Time | 5 ms |
| Release Time | 2 ms |
| Mounting Type | Through Hole |
| Qualification | - |
| Approval Agency | CUR, UL |
| Coil Insulation | Class F |
| Coil Resistance | 3.84 kOhms |
| Contact Material | Silver Palladium (AgPd), Gold (Au) |
| Switching Voltage | 125VAC, 30VDC - Max |
| Termination Style | PC Pin |
| Base Product Number | AZ832-2C |
| Load - Max Switching | 250VA, 60W |
| Must Operate Voltage | 19.2 VDC |
| Must Release Voltage | 2.4 VDC |
| Operating Temperature | -40°C ~ 85°C |
| Contact Rating (Current) | 3 A |
