Packaging
Tray
Output Type
Current - Unbuffered
Part Status
Active
Architecture
Quad-Switch
RoHS Compliant
Why Choose Us
Quality Warranty
Quality guarantee
ESD Safe
Anti-static protection
Global Shipping
Fast delivery
Quick Response
Fast RFQ
Request for Quote
Price not displayed? Please send an RFQ, and we will respond immediately.
MOQ1 pcs
Professional Packaging
Original Packaging
Factory sealed, ESD anti-static tray
Desiccant Protection
Humidity indicator card & silica gel included
Vacuum Sealing
Moisture barrier bag, nitrogen filled
Secure Boxing
Anti-vibration foam, shock-proof labeling
| Parameter | Value |
|---|---|
| Category | Digital to Analog Converters (DAC) |
| Manufacturer | Analog Devices Inc. |
| Series | - |
| Packaging | Tray |
| Output Type | Current - Unbuffered |
| Part Status | Active |
| Architecture | Quad-Switch |
| Manufacturer | Analog Devices Inc. |
| INL/DNL (LSB) | ±4, ±2 |
| Mounting Type | Surface Mount |
| Settling Time | - |
| Data Interface | Parallel |
| Number of Bits | 16 |

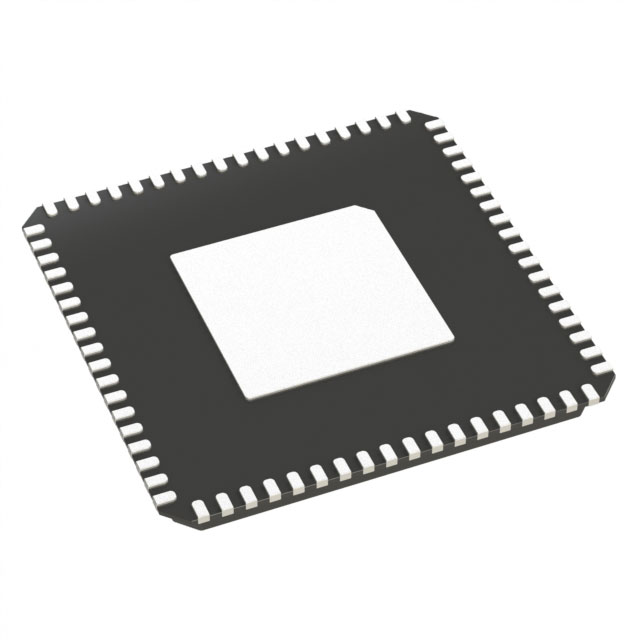

| Package / Case | 72-VFQFN Exposed Pad, CSP |
| Reference Type | External, Internal |
| Base Product Number | AD9747 |
| Differential Output | Yes |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 72-LFCSP-VQ (10x10) |
| Number of D/A Converters | 2 |
| Voltage - Supply, Analog | 3.13V ~ 3.47V |
| Voltage - Supply, Digital | 1.7V ~ 1.9V, 3.13V ~ 3.47V |
