PSRR
66dB ~ 45dB (10kHz ~ 1MHz)
Packaging
Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel®
Output Type
Adjustable
Part Status
Active
RoHS Compliant
Why Choose Us
Quality Warranty
Quality guarantee
ESD Safe
Anti-static protection
Global Shipping
Fast delivery
Quick Response
Fast RFQ
Request for Quote
Price not displayed? Please send an RFQ, and we will respond immediately.
MOQ1 pcs
Professional Packaging
Original Packaging
Factory sealed, ESD anti-static tray
Desiccant Protection
Humidity indicator card & silica gel included
Vacuum Sealing
Moisture barrier bag, nitrogen filled
Secure Boxing
Anti-vibration foam, shock-proof labeling
| Parameter | Value |
|---|---|
| Category | Voltage Regulators - Linear, Low Drop Out (LDO) Regulators |
| Manufacturer | Analog Devices Inc. |
| PSRR | 66dB ~ 45dB (10kHz ~ 1MHz) |
| Series | - |
| Packaging | Tape & Reel (TR) || Cut Tape (CT) || Digi-Reel® |
| Output Type | Adjustable |
| Part Status | Active |
| Mounting Type | Surface Mount |

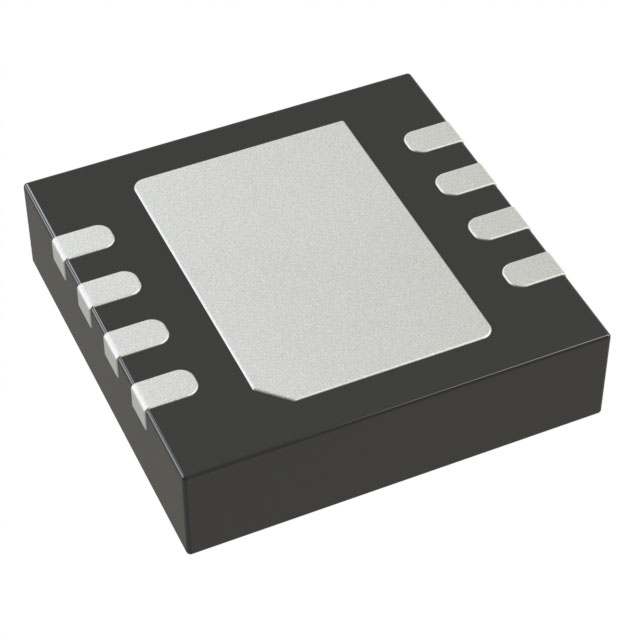

| Package / Case | 8-WFDFN Exposed Pad, CSP |
| Control Features | Enable |
| Current - Output | 200mA |
| Base Product Number | ADP7182 |
| Protection Features | Over Current, Over Temperature |
| Number of Regulators | 1 |
| Output Configuration | Negative |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Input (Max) | -28V |
| Voltage Dropout (Max) | 0.36V @ 200mA |
| Current - Supply (Max) | 850 µA |
| Voltage - Output (Max) | -27.64V |
| Supplier Device Package | 8-LFCSP-WD (3x3) |
| Current - Quiescent (Iq) | 53 µA |
| Voltage - Output (Min/Fixed) | -1.22V |
