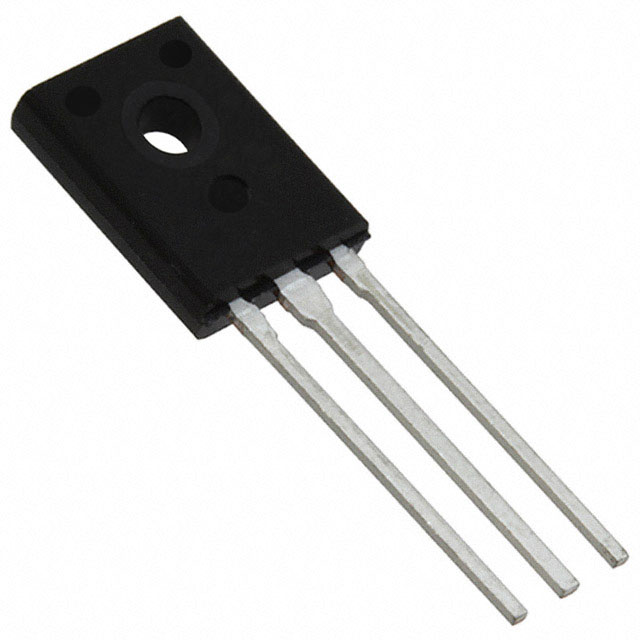

RoHS / ComplianceImages are for reference only
Packaging
Bulk
Part Status
Obsolete
Power - Max
1.25 W
Mounting Type
Through Hole
RoHS Compliant
Why Choose Us
Quality Warranty
Quality guarantee
ESD Safe
Anti-static protection
Global Shipping
Fast delivery
Quick Response
Fast RFQ
Request for Quote
Price not displayed? Please send an RFQ, and we will respond immediately.
MOQ1 pcs
Professional Packaging
Original Packaging
Factory sealed, ESD anti-static tray
Desiccant Protection
Humidity indicator card & silica gel included
Vacuum Sealing
Moisture barrier bag, nitrogen filled
Secure Boxing
Anti-vibration foam, shock-proof labeling
| Parameter | Value |
|---|---|
| Category | Single Bipolar Transistors |
| Manufacturer | MCC (Micro Commercial Components) |
| Series | - |
| Packaging | Bulk |
| Part Status | Obsolete |
| Power - Max | 1.25 W |
| Mounting Type | Through Hole |
| Package / Case | TO-225AA, TO-126-3 |
| Transistor Type | NPN |
| Base Product Number | MJE13003 |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Frequency - Transition | 5MHz |
| Supplier Device Package | TO-126 |
| Vce Saturation (Max) @ Ib, Ic | 1V @ 250mA, 1A |
| Current - Collector (Ic) (Max) | 1.5 A |
| Current - Collector Cutoff (Max) | 500µA |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 8 @ 500mA, 5V |
| Voltage - Collector Emitter Breakdown (Max) | 400 V |
